Overview modules

In order to be able to optimally adapt VariMotion to the respective application, various modules are available.

The modular motion controllers have different modules which make it possible to realize a flexible structure according to the respective requirements.

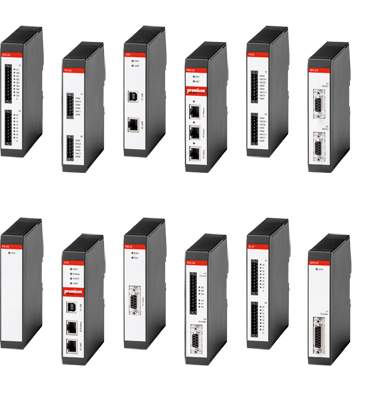

VariMotion modules

Type Module function
CPU-140 Control module in variable performance classes
CPU-170 Control module with Profinet
in variable performance classes
CPU-180 Control module with EtherCAT
in variable performance classes
CPU-240 High-performance control module
in variable performance classes
PNS-25 Profinet Device, Ethernet
ECS-26 EtherCAT Slave, Ethernet
PBS-21 Profibus Slave, Ethernet
SDC-23 2-fold RS232 interface
DIO-26 8 digital inputs and 8 digital outputs,
optional pulse counter and position trigger
DI-27 16 digital inputs
DO-28 16 digital outputs
VI-23 4 analog inputs, 14 bit
VO-24 4 analog outputs, 14 bit
MPX-25 Encoder input, incremental, EnDat 2.2, BiSS
PCX-24 Position controller with external speed controller
PSI-28 Additional power supply module
