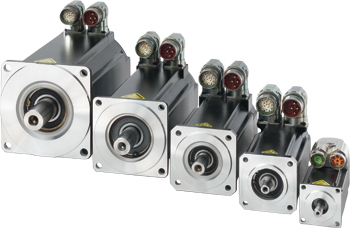

Due to the high power density of the servomotors, they are particularly
suitable for applications where high drive dynamics are required and at the
same time a compact design is required.
The motors are available with torques from 0.18 Nm to 53.0 Nm
with different flange sizes and overall lengths.
Feedback
The motors can be equipped with various feedback systems as single and multi-turn.
- Resolver
- Optical EnDat encoder
- Inductive EnDat encoder
- Optical Hiperface encoder
- Optical Hiperface encoder for functional safety
|
|
Properties
- Standardized flanges, fit j6, accuracy according to DIN 42955, tolerance class N
- Insulation class F according to IEC 60085
- Protection class IP 54
- Rotatable connectors for feedback and power
- Temperature monitoring of the stator winding with temperature sensor
Options
- Holding brake
- Shaft seal for protection class IP 65
- Various variants for flange, bolt circle and shaft
- Various windings for optimum adaptation to the required speed
- Versions for operation with 24 Volt and 48 Volt
Functional safety
Functional safety according to EN 13849 provides safety functions where a safe
mechanical connection between the motor shaft and feedback is required.
For this purpose, the motors can be supplied with a secure optical feedback
with Hiperface interface. This eliminates any additional safety measures to
detect a mechanical defect.
|
